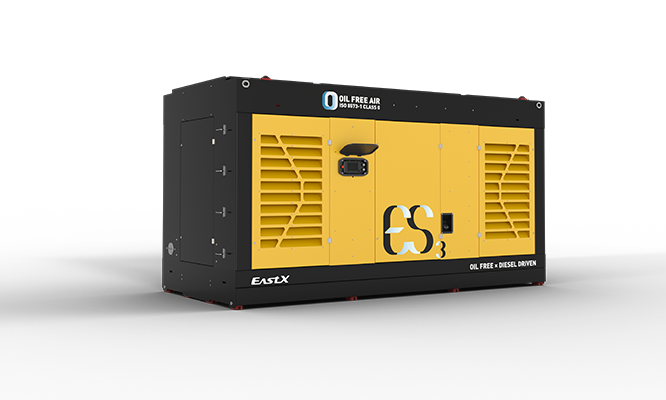

ES3
100% oil-free
Advanced engine and compressor heads
High weatherability
Products information

Product Parameters

Model

ES3

Nominal Volumetric Flow Rate

(Adjustable by speed)

Max:48 m/min

Min:24 m/min

Pressure Range

0.1~1.3 Mpa

Dimensions (length x width x height)

4900x2300x2700mm

Weight (dry/wet)

9800kg /13000kg

Noise

88dB

Rated Power

563kW

Emission Standard

National Level Three

Built In Fuel Tank Capacity

3050L

Brand

EastX


Product Highlights


Stable And Efficient

· Advanced and efficient engine and compressor heads

· Advanced and stable control system

· Built in high-capacity fuel tank and external fuel tank interface

· Strict system testing



Strong environmental adaptability

· Air cooled cooling, no need for cooling water

· Normal startup and operation in low-temperature environment

· Excellent cooling performance in high-temperature environments

· Rainproof, dustproof, and anti willow catkins design



Reliable and durable

· Using stainless steel pipes and corrosion-resistant heat exchangers

· Independent intake and exhaust channels

· Chassis leakage prevention device



Other

· Automatic start stop

· Variable speed regulation (air volume)

· Visual and audio dual warning
